EGFP-Rab5A S34N

价格:1800元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: EGFP-Rab5A S34N
出品公司: Addgene
目录编号: 28045
存储实验室: Qing Zhong

载体骨架基本信息
载体名称: pcDNA3
载体出品公司: Invitrogen
空载体大小: 45446bp
完整质粒大小: 6748bp
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: Rab5A
物种来源: H. sapiens (human)
插入大小: 647bp
基因突变: S34N
标签/融合蛋白: EGFP on N-term
克隆方法: 限制性内切酶
5’测序引物 CMV-F
3’测序引物 BGH-rev

文献引用方法
材料和方法部分: EGFP-Rab5A S34N was a gift from Qing Zhong (Addgene plasmid # 28045 ; http://n2t.net/addgene:28045 ; RRID:Addgene_28045)
参考文献部分: Rubicon controls endosome maturation as a Rab7 effector. Sun Q, Westphal W, Wong KN, Tan I, Zhong Q. Proc Natl Acad Sci U S A. 2010 Nov 9. 107(45):19338-43. 10.1073/pnas.1010554107 PubMed 20974968

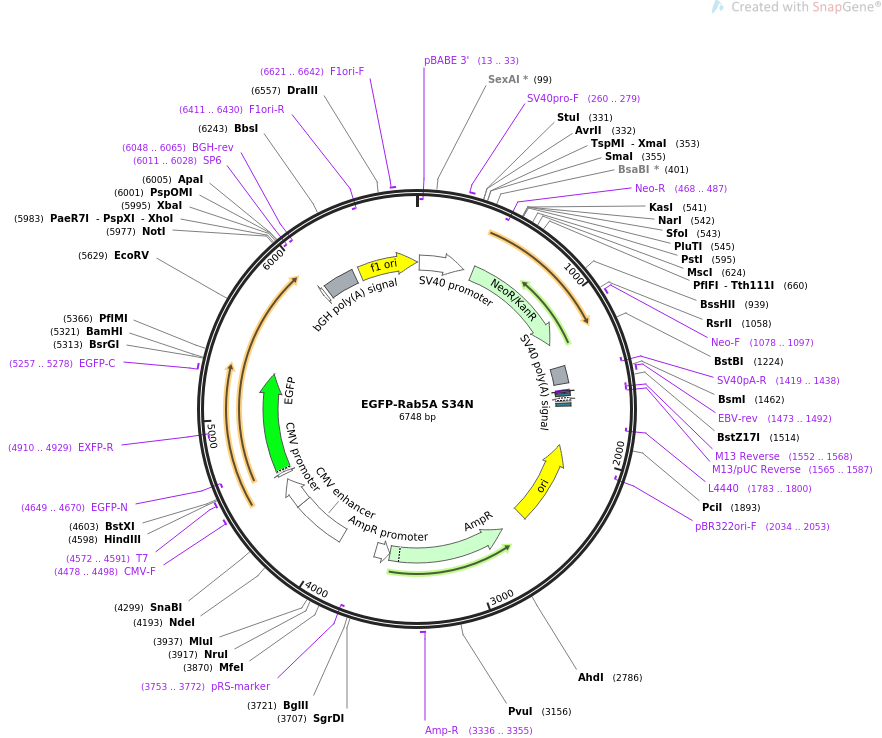

载体图谱质粒图谱和多克隆位点信息

EGFP-Rab5A

载体简介

载体序列

LOCUS       EGFP-Rab5A S34N                6748 bp ds-DNA     circular SYN 15-JUN-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    EGFP-Rab5A S34N
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6748)
  AUTHORS   Sun Q, Westphal W, Wong KN, Tan I, Zhong Q
  TITLE     Rubicon controls endosome maturation as a Rab7 effector.
  JOURNAL   Proc Natl Acad Sci U S A. 2010 Nov 9. 107(45):19338-43.
  PUBMED    20974968
REFERENCE   2  (bases 1 to 6748)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 15, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6748
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(13..33)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        18..347
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      198..333
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     260..279
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             414..1208
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(468..487)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     1078..1097
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    1382..1503
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1419..1438)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1473..1492
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(1552..1568)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1552..1568)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(1565..1587)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    1576..1592
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(1600..1630)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    1645..1666
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(1783..1800)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(1954..2542)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2034..2053)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(2713..3573)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     3336..3355
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(3574..3678)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(3753..3772)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        3944..4323
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        4324..4527
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     4478..4498
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     4572..4591
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        4572..4590
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             4604..5320
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     CDS             4604..5320
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(4649..4670)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(4910..4929)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     5257..5278
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     promoter        complement(6010..6028)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(6011..6028)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(6048..6065)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    6054..6278
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      6324..4
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6411..6430)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6621..6642
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
ORIGIN
        1 aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag
       61 gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag
      121 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc
      181 cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc
      241 atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc tctgagctat
      301 tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag ctcccgggag
      361 cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt cgcatgattg
      421 aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg
      481 actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg
      541 ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaggacg
      601 aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg
      661 ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc
      721 tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc
      781 tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc
      841 gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc
      901 aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc gacggcgagg
      961 atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct
     1021 tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt
     1081 tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc
     1141 tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt
     1201 tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc
     1261 acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg
     1321 ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc
     1381 caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     1441 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     1501 ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat ggtcatagct
     1561 gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat
     1621 aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc
     1681 actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg
     1741 cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct
     1801 gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt
     1861 atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc
     1921 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     1981 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     2041 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     2101 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     2161 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     2221 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     2281 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     2341 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt
     2401 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     2461 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     2521 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     2581 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     2641 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     2701 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     2761 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     2821 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     2881 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     2941 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     3001 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     3061 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     3121 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     3181 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     3241 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     3301 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     3361 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     3421 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     3481 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     3541 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     3601 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     3661 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtcg acggatcggg
     3721 agatctcccg atcccctatg gtgcactctc agtacaatct gctctgatgc cgcatagtta
     3781 agccagtatc tgctccctgc ttgtgtgttg gaggtcgctg agtagtgcgc gagcaaaatt
     3841 taagctacaa caaggcaagg cttgaccgac aattgcatga agaatctgct tagggttagg
     3901 cgttttgcgc tgcttcgcga tgtacgggcc agatatacgc gttgacattg attattgact
     3961 agttattaat agtaatcaat tacggggtca ttagttcata gcccatatat ggagttccgc
     4021 gttacataac ttacggtaaa tggcccgcct ggctgaccgc ccaacgaccc ccgcccattg
     4081 acgtcaataa tgacgtatgt tcccatagta acgccaatag ggactttcca ttgacgtcaa
     4141 tgggtggagt atttacggta aactgcccac ttggcagtac atcaagtgta tcatatgcca
     4201 agtacgcccc ctattgacgt caatgacggt aaatggcccg cctggcatta tgcccagtac
     4261 atgaccttat gggactttcc tacttggcag tacatctacg tattagtcat cgctattacc
     4321 atggtgatgc ggttttggca gtacatcaat gggcgtggat agcggtttga ctcacgggga
     4381 tttccaagtc tccaccccat tgacgtcaat gggagtttgt tttggcacca aaatcaacgg
     4441 gactttccaa aatgtcgtaa caactccgcc ccattgacgc aaatgggcgg taggcgtgta
     4501 cggtgggagg tctatataag cagagctctc tggctaacta gagaacccac tgcttactgg
     4561 cttatcgaaa ttaatacgac tcactatagg gagacccaag cttatggtga gcaagggcga
     4621 ggagctgttc accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca
     4681 caagttcagc gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa
     4741 gttcatctgc accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac
     4801 ctacggcgtg cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa
     4861 gtccgccatg cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa
     4921 ctacaagacc cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct
     4981 gaagggcatc gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta
     5041 caacagccac aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt
     5101 caagatccgc cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa
     5161 cacccccatc ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc
     5221 cgccctgagc aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac
     5281 cgccgccggg atcactctcg gcatggacga gctgtacaag ggatccatgg ctagtcgagg
     5341 cgcaacaaga cccaacgggc caaatactgg aaataaaata tgccagttca aactagtact
     5401 tctgggagag tctgctgttg gcaaaaatag cctagtgctt cgttttgtga aaggccaatt
     5461 tcatgaattt caagagagta ccattggggc tgcttttcta acccaaactg tatgtcttga
     5521 tgacactaca gtaaagtttg aaatatggga tacagctggt caagaacgat accatagcct
     5581 agcaccaatg tactacagag gagcacaagc agccatagtt gtatatgata tcacaaatga
     5641 ggagtccttt gcaagagcaa aaaattgggt taaagaactt cagaggcaag caagtcctaa
     5701 cattgtaata gctttatcgg gaaacaaggc cgacctagca aataaaagag cagtagattt
     5761 ccaggaagca cagtcctatg cagatgacaa tagtttatta ttcatggaga catccgctaa
     5821 aacatcaatg aatgtaaatg aaatattcat ggcaatagct aaaaaattgc caaagaatga
     5881 accacaaaat ccaggagcaa attctgccag aggaagagga gtagacctta ccgaacccac
     5941 acaaccaacc aggaatcagt gttgtagtaa ctgaggcggc cgctcgagca tgcatctaga
     6001 gggccctatt ctatagtgtc acctaaatgc tagagctcgc tgatcagcct cgactgtgcc
     6061 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     6121 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag
     6181 gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga
     6241 caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag
     6301 ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt
     6361 ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc
     6421 tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg
     6481 gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta
     6541 gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt
     6601 ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat
     6661 ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa
     6721 tgagctgatt taacaaaaat ttaacgcg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
